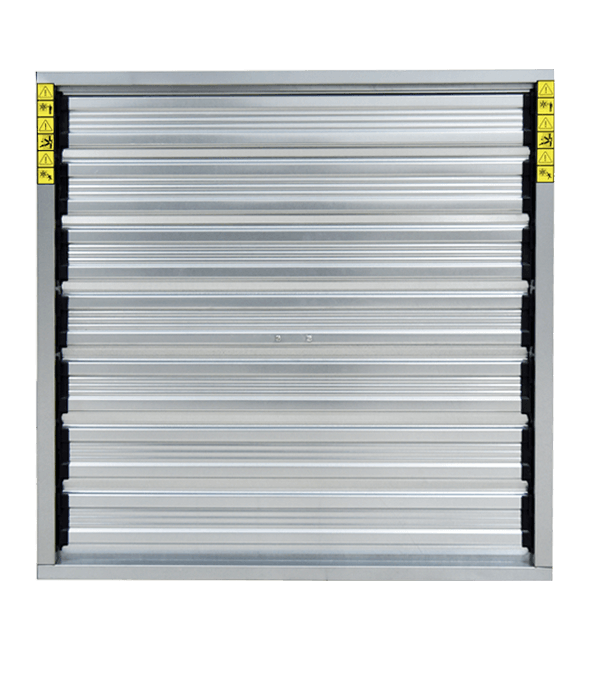

JW- push-pull fan
JW Series high-grade fans are mainly composed of fan blades, motor, frame, screen, support frame, shutters, etc. .
Tel.：+86-15244440295 +86-536-3268108
Company Address: Yiwangfu North Road, Qingzhou Economic Development Zone
Tel.：+86-15244440295 +86-536-3268108
Company Address: Yiwangfu North Road, Qingzhou Economic Development Zone

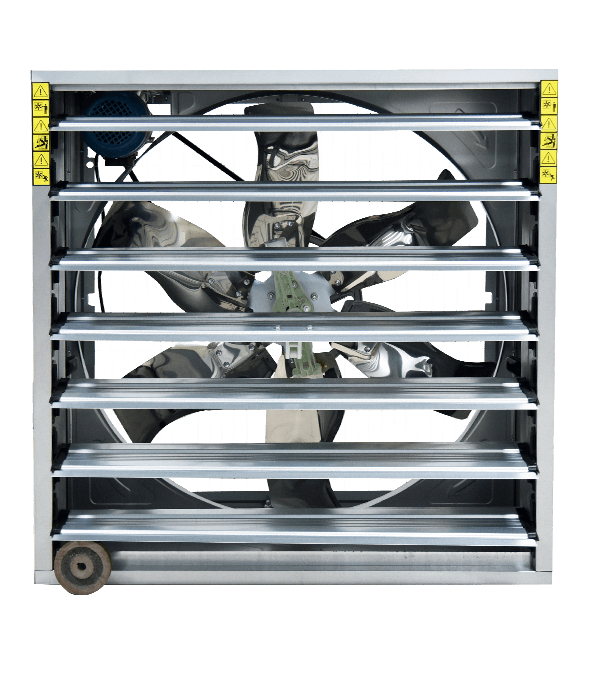

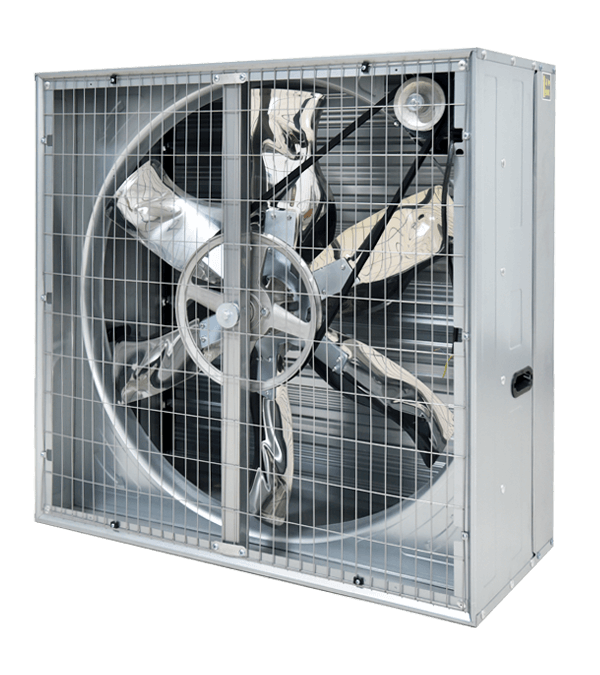

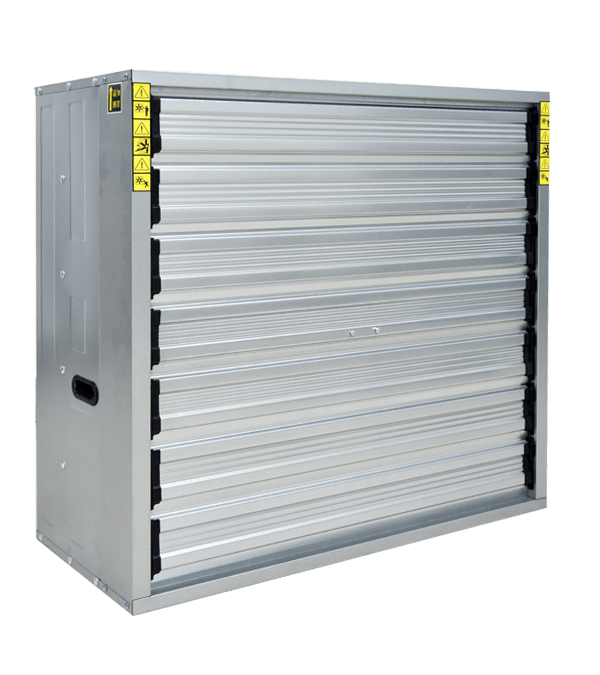

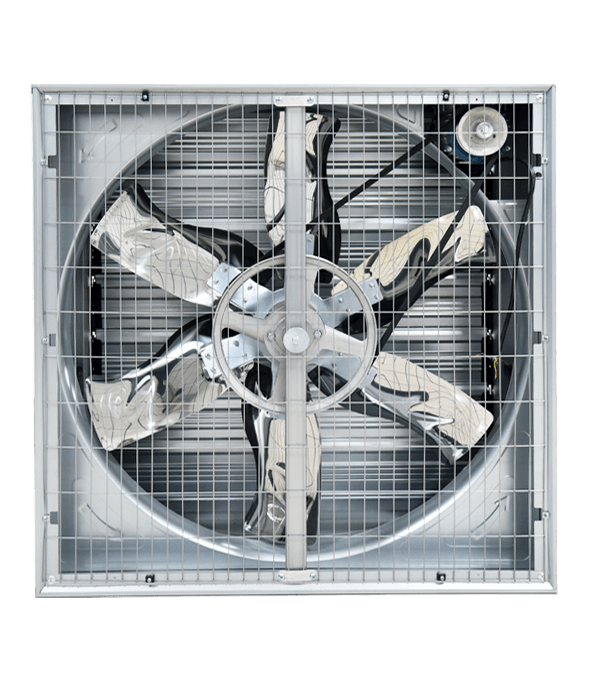

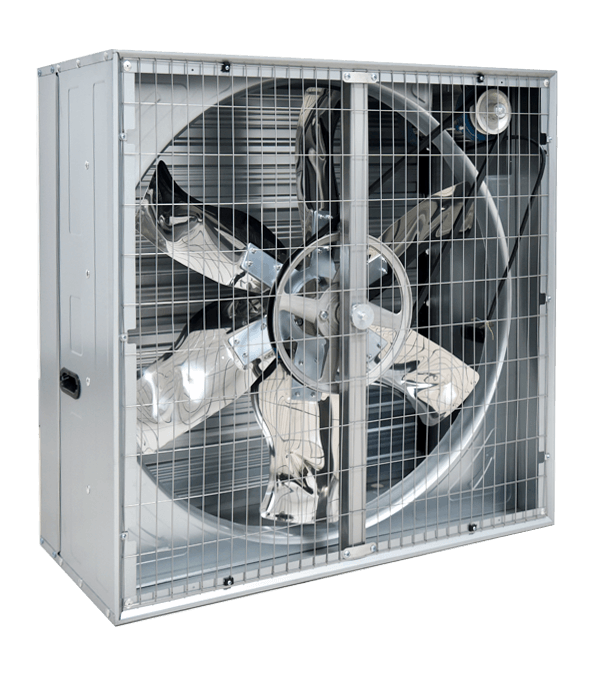

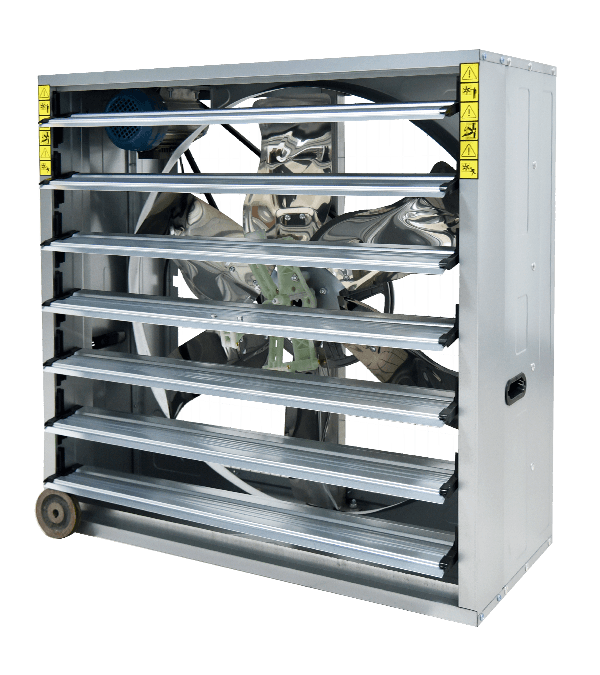

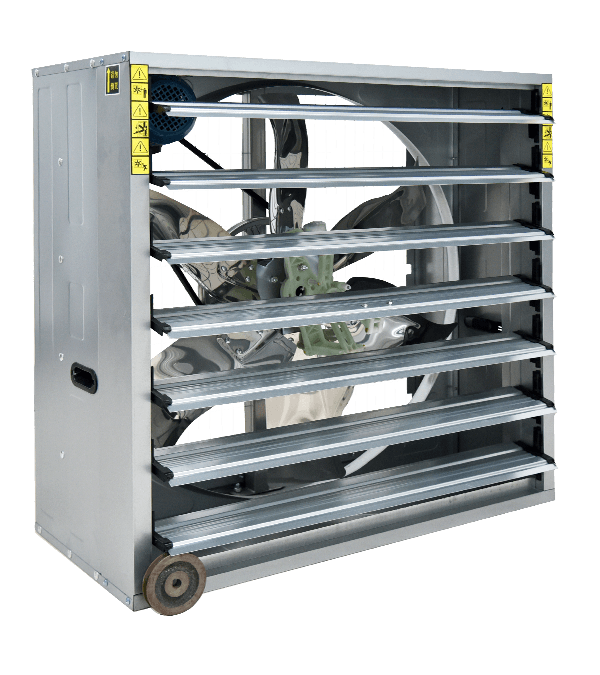

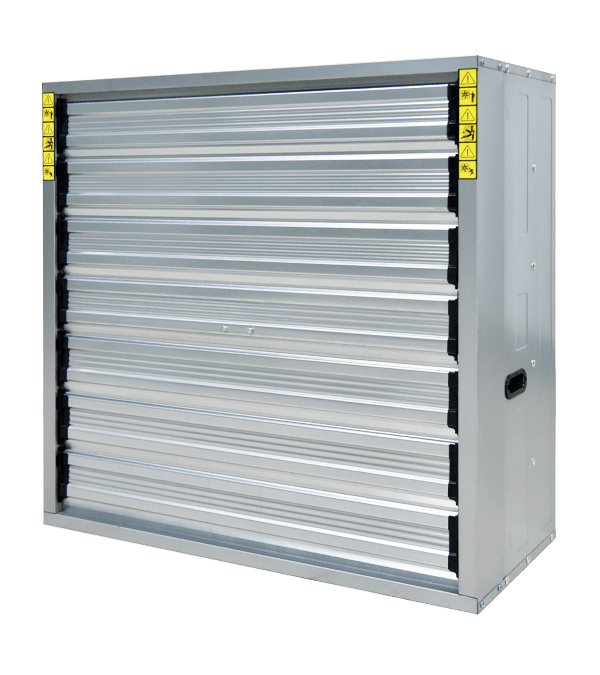

JW Series high-grade fans are mainly composed of fan blades, motor, frame, screen, support frame, shutters, etc. . They are developed by our technicians according to the aerodynamics, effectively reducing the wind resistance coefficient and optimizing the overall performance of the equipment, the main parts are made of galvanized sheet by computer numerical control machine，which is widely used for ventilation and cooling in all kinds of livestock farms.
| Model Specification | Diameter biades (mm) | Frequency(Hz) | Motor rotational speed rpm | Air flow(m³/h) | Import power(w) | Nosie decibels | Rated voltage（V） | Height（mm） | width（mm） | Thickness（mm） |
| JWS-1000(35') | 900 | 50 | ≥1400 | 25000 | 750 | ≤64 | 380 | 1000 | 1000 | 450 |
| JWS-1100(40') | 1000 | 50 | ≥1400 | 29000 | 750 | ≤64 | 380 | 1100 | 1100 | 450 |
| JWS-1380(50') | 1270 | 50 | ≥1400 | 44000 | 1100 | ≤64 | 380 | 1380 | 1380 | 450 |
| JWS-1530(55') | 1400 | 50 | ≥1400 | 55800 | 1500 | ≤64 | 380 | 1530 | 1530 | 450 |
